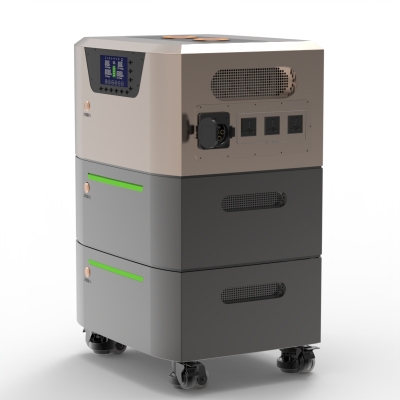

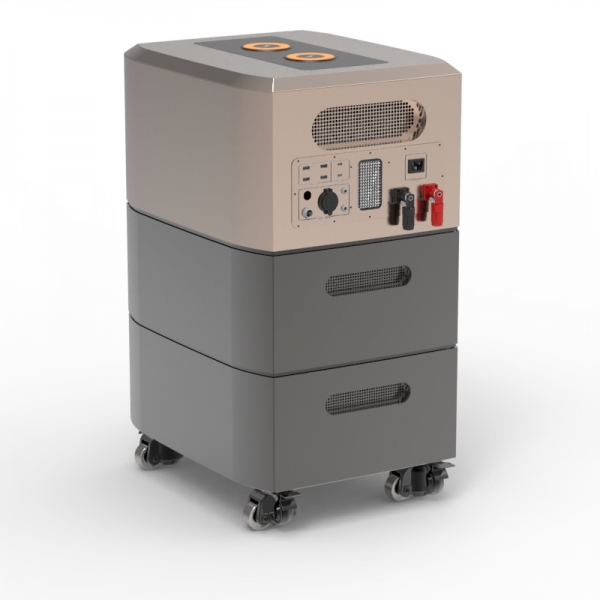

10KWh Stacked ESS Hybrid Inverter with 48V Lithium Battery
Product Overview
SRSOLAR LS series is all-in-one stackable ESS for home energy storage solution, which uses flexible stackable design, easy to install and operate. This all-in-one energy storage system offer an economical and self-sufficiency solution to power home appliance or equipment by storing excess clean energy during the daytime. This All-in-one stackable ESS also comes with a built-in WIFI function, users can monitor and operate system performance anytime and anywhere by mobile. Compact and floor installation offers the flexibility.
Main Features
l Modular stacking design.Hybrid Inverter with lithium ion battery and mppt controller.
l Stackable LiFePO4 battery modules and hybrid inverter module, easy capacity expansion
l Selectable priority between solar batteries or mains to feed the output
l Wide range of selectable mains input voltage (110V/220V/230V/240V)
l Protection for over-discharge, overload, over tempearture, short circuit protection, ets
l Support communication interface RS232, RS485, CAN, Bluetooth
Product Specification
Item | 5KW | 10KW | 15KW | 20KW | 25KW |
Model | LS-5K5B | LS-5K10B | LS-5K15B | LS-5K20B | LS-5K25B |
Inverter | |||||
Inverter Type | 5KW Hybrid Inverter (Optional 10KW) | ||||
Output Power | 5000W | ||||
Output Voltage | 210V-230V 50Hz AC | ||||
PV Array MPPT Voltage | 120Vdc-450Vdc | ||||
Peak Efficiency | >95% battery mode >99% line mode | ||||
Transfer Time | 10ms | ||||
Peak Power | 5500W | ||||
Communication | RS232 RS485 CAN WIFI | ||||
Lithium Battery | |||||
Nominal Voltage | 51.2V | ||||
Nominal Capacity | 100Ah | ||||
Energy | 5.12KWh | 10.24Wh | 15.56KWh | 20.48KWh | 25.6KWh |
Max Discharge Current | Continuous 100A | ||||
Max Charge Current | 100A (Continuous 40A) | ||||
Charge Cut-Off Voltage | 58.4V | ||||
Discharge Cut Off Voltage | 40V | ||||
DOD | 80% | ||||
Noise Emission | <50db | ||||
Operating Temperature | -20°-60° | ||||
Storage Temperature | 0-45° | ||||
Cycle Life | 6000+ Cycles | ||||
Communication | RS232 RS485 CAN | ||||
Battery cell | Lifepo4 cell 16S1P | ||||
Cooling Mode | Active Cooling | ||||
Warranty | 5Years | ||||
